4UX-170G
Features a side-delivery design via screen guides for efficient operation. This enables 4-row harvesting (2+2 rows) when paired with a cooperating potato harvester, dramatically increasing throughput for large-scale operations.
inquiryI. Low-Loss Harvesting
△Digging System: Features a blade with an adjustable-angle bracket for precise digging depth control, reducing damage and minimizing misses.
△Haulm & Conveyor System: Equipped with flexible rubber-coated rollers and a low-drop conveyor system. The two-stage primary screening web features adjustable angle and height to suit varying field conditions for gentle soil separation, minimizing bruising and preserving tuber quality.
△Pre-Topping System: 4 spring-loaded topping discs with a floating contour design. They flex to avoid stones and obstacles, preventing hard impacts that could damage tubers, thereby minimizing losses from the outset.
II. Efficient Cleaning
△Screening System: Utilizes 2 articulated primary screening webs. The segmented, flexible design provides gentle vibration for effective soil removal and thorough separation, ensuring gentle handling of tubers while remaining easy to maintain.
△Cleaning System: Twin feed rollers work seamlessly with a central rubber debris shield. They quickly transport and discharge cut vines, preventing wrapping around the digging and conveying components. This ensures effective separation of vines and debris from the tubers, minimizing foreign material in the final product.
III. High Harvest Efficiency
△Pre-Clearing: The 4 spring-loaded topping discs feature large-diameter, smooth blades that resist weed wrapping. By clearing vines and weeds ahead of the digger, these discs reduce stoppages due to blockages, ensuring continuous operation and higher field efficiency.
△Combine Harvesting Capability: Features a side-delivery design via screen guides for efficient operation. This enables 4-row harvesting (2+2 rows) when paired with a cooperating potato harvester, dramatically increasing throughput for large-scale operations.
IV. Versatility & Adaptability
△Power Requirements: PTO-driven, designed for 4-wheel tractors of 88 HP and above. Its straightforward operation makes it ideal for small to medium-sized potato fields, including irregular and sloped terrain.
△Safety Protection: Comes equipped with an overload clutch safety device. If the machine encounters excessive resistance from stones or other obstructions, the clutch automatically disengages to protect the gearbox, drive components, and digging implements, reducing the risk of costly damage.
Detailed View
For heavy digging conditions
A mechanically adjustable rotary agitator ensures additional gentle sieving on the second main web. Thus, the sieving performance is increased, especially under heavy digging conditions.
A mechanically adjustable rotary agitator ensures additional gentle sieving on the second main web. Thus, the sieving performance is increased, especially under heavy digging conditions.

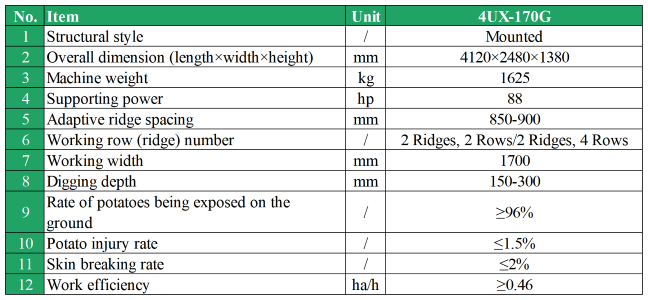

Specifications
NONE
